Total Laboratory Automation bamboo horizontal airflow carbonization furnace price for sale

  • >=1 Set/s
    $5,000.00
Uso:
Haciendo charcaol
Tipo:
Flujo de aire
Número de Modelo:
170b
Envío:
Ayuda Transporte marítimo
Customization:
Logotipo personalizado (Min. Order: 1 Set/s)
Embalaje personalizado (Min. Order: 1 Set/s)

More

Personalización gráfica (Min. Order: 1 Set/s) Menos
Muestras:
$10.00 /Set | 1 Set (Pedido mínimo) | Comprar muestras
Reportar Actividades sospechosas
Descripción general
Detalles rápidos
Condición:
Nuevo
Lugar del origen:
Henan, China
Servicio Local ubicación:
None
Video saliente de inspección:
Siempre
: Informe de prueba:
Siempre
Marketing tipo:
Producto caliente 2019
Garantía de los componentes principales.:
1 año
Los componentes principales.:
Motor
Marca:
Sanjin
Volumen eficaz:
10m3
Dimensión (L*W*H):
4,60*2,1*2,1 m
Peso:
3,5 T, 3,5 T
Voltaje:
380V3phase 50HZ
Energía (W):
0
Certificación:
CE ISO
Clave de puntos de venta:
Fácil de operar
Industrias aplicables:
Planta de fabricación
Después de servicio de garantía:
Apoyo en línea
Exposición de ubicación:
None
Servicio posventa proporcionado:
Ingenieros disponibles para el servicio de maquinaria en el extranjero
Materias primas:
Cáscara de bambú de madera dura de coco
Color:
La solicitud del cliente
De combustible:
Leña carbón gas natural gas
Ventaja:
De alta eficiencia
Instalación:
Ingeniero de guía
Carbonización tiempo:
6-8 horas
Tiempo de enfriamiento:
2-4 horas
La capacidad de:
7T/24h
Nombre del producto:
De carbonización de la máquina
Volumen efectivo:
10m3
Dimensión (L * W * H):
4,60*2,1*2,1 m
Tensión de:
380V3phase 50HZ
Potencia (W):
0
La certificación:
CE ISO
Garantía:
1 año, 1 año
Capacidad de suministro
Capacidad de suministro:
10 Set/Sets per Month
Embalaje y envío
Paquete
export standard
Puerto
Qingdao port
Descripción de vídeo
Product Description

 Total Laboratory Automation bamboo horizontal airflow carbonization machine for making charcoal

Introduction

It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.

The feature:

1.Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times.

2.The door use packing seal, not into the air, Out of carbon than the conventional carbonization furnace is much higher.

3.The reason is called green carbonization furnace because the stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.

4. Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler.

5.Carbonization furnace to end charcoal cooling time is shorter, we use the inter layer of the gap between the unit water cooling carbonization furnace natural cooling, more efficient and convenient.

6.Environmental air carbonization furnace Supporting a track and kiln car, use more convenient,reduce worker labor intensity.

Customers to buy this carbonization furnace really reached a simple, labor-intensive, easy to install charcoal out of carbon, cooling time greatly reduced, carbonization furnace production can be greatly improved.

Carbonization furnace can be customized according to customer requirements.(Materials and working process).

Advantage:

1.Due to its design principle with two layers,one is the cooling layer, another is the heat preservation layer, so can reduce its carbonization time.

2. It can use different material as heating source.Such as the Firewood/coal gas/ natural gas/liquefied gas/Combustible gas(produced during the carbonized process).

3.Using anaerobic coking and combustible gas recycling technology.

4. Every step from raw materials to production process will be monitored by the engineer, equipment debugging the final before delivery.With engineer and boss signature before shipment ensure the reliability of the technology, has the practicability of products.

5.Smoke purification treatment :Water and activated carbon filtration purification gas.

model
120
170a
170b
190
capacity
2T/24H
4T/24H
7T/24H
10T/24H
dimension
2.86*1.6*2.1m
2.85*2.1*2.1m
4.60*2.1*2.1m
5.5*2.2*2.2m
weight
1.68t
3t
3.5t
6.8t
inner pot diameter
1.2m
1.7m
1.7m
1.9m
inner pot length
2.6m
2.2m
4.4m
5.3m

Specifications

1.Supply to USA, Europe, and Australia
2.Material: bamboo, wood, wood log, branches, coconut shell, wood briquette, biomass briquette etc.
3.Professional charcoal machine supplier
4.Energy saving, it can reuse the smoke produced during the process of carbonization.

Detailed Images

To improve the design of the charcoal carbonization furnace, in order to prevent gas leakage, the oven door with graphite packing seal, greatly enhancing the effect of carbonization

In the carbonization process ,can produce combustible gas,can recycle these gas.These gas delivery to the white tank through No.1 pipeline,then open the valve of the No.2 pipeline, these gas can reach to the bottom of the furnace through the No.2 pipeline.At the No.4 valve, you can be connected to a pipeline at the No.4 valve, so that can use the extra gas,these gas can cooking, burnning boiler etc.So can save some cost, it is energy saving.

This is shunt tank, at the Nbottom(NO.5) can collect the wood tar.

Other Products
Our Company
Packing & Delivery
Our most professional packaging

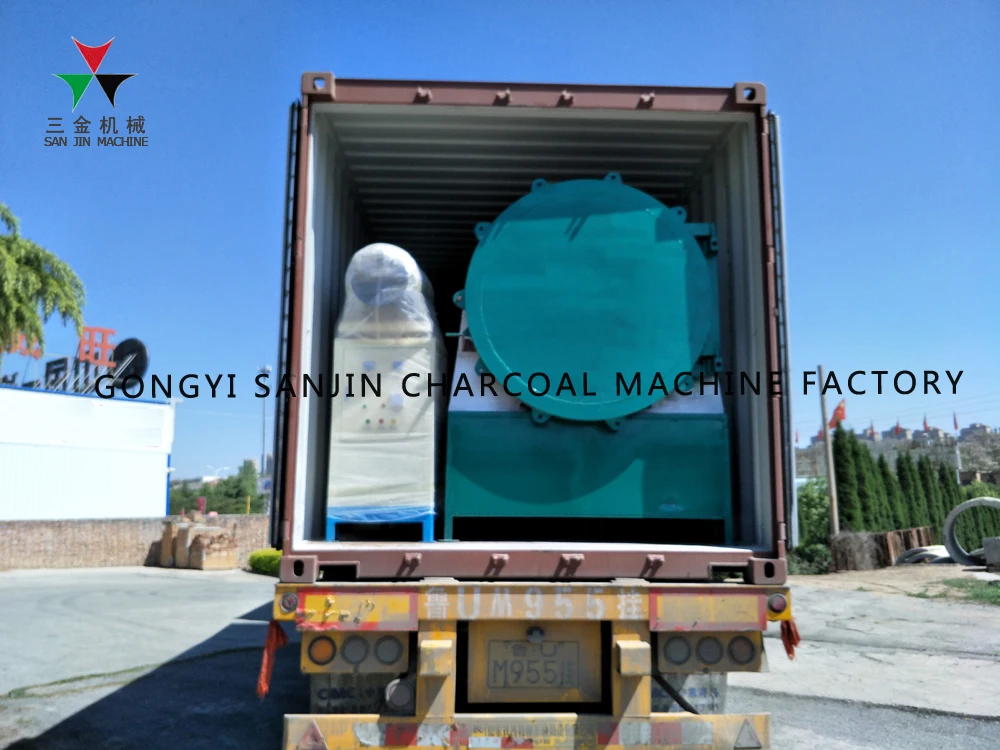

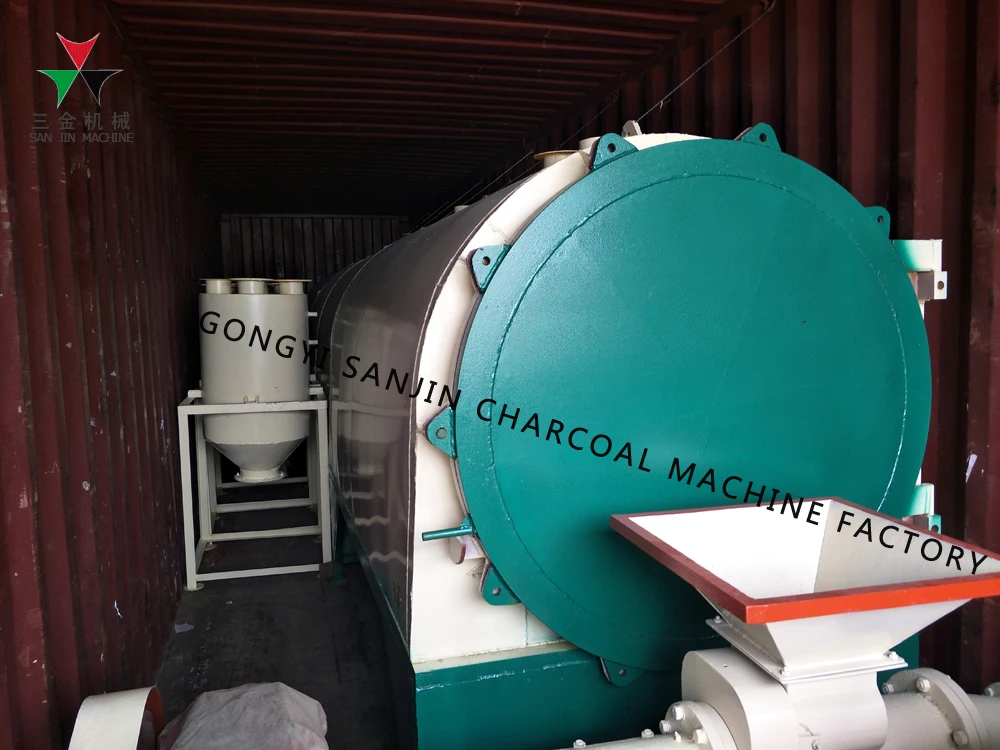

Transport of large trucks to the seaport
And international transport cooperation
our clients
Our Service

♥. Pre-sale-service:Design and manufacture machines for you as your special requirement, provide you with project, process design and pruchase program.
♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.
♥. After-sale-service: Engineers are available to install debugging equipments of the whole production line, besides, commissioning and training operators on site.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
