Atribut
Positioning hole installationMounting Type
S80-A3-ATHT02-S2EModel Number
SHOONISBrand Name
Temperature humidity controller sensorUsage

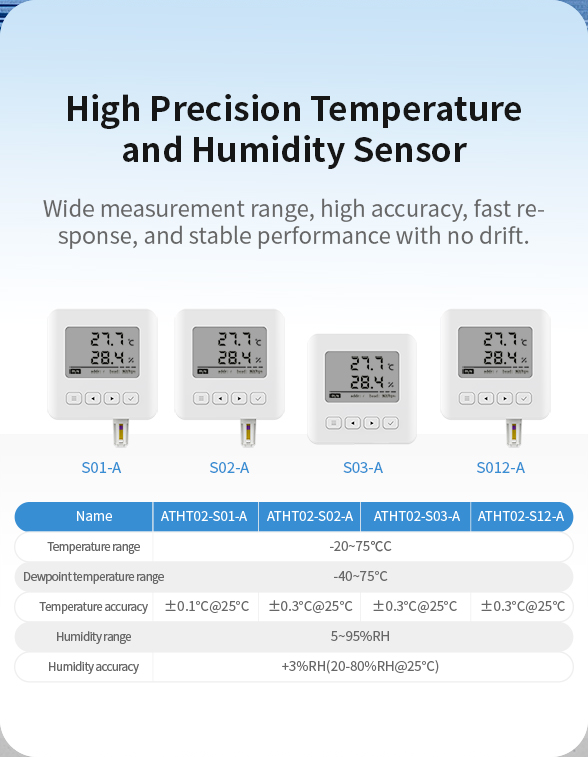

±0.3℃@25℃Accuracy
-20℃~75℃Switching Temperature
Description:Temperature and Humidity Sensor
Type:Temperature and Humidity Sensor
Place of Origin:Guangdong, China
Features:Wireless transmission
Theory:Temperature and Humidity Sensor
Description:Temperature and Humidity Sensor
Termination Style:none
Current:5V/200mA
Operating temperature range:-20℃~75℃
Processor:ARM
Embedded Operating System:RTOS
Communication Por:1 RS485 Interface
Interface Form:Phoenix terminal
Communication Protocol:Modbus RTU
Overvoltage and Overcurrent Protection:5V/200mA
Surge Protection:600W Surge
Protection Form:PPTC+TVS
Temperature Range:-20℃~75℃
Temperature Accuracy:±0.3℃@25℃
jual Unit:item tunggal
ukuran paket tunggal:12.6X9X4 cm
tunggal berat kotor:0.100 kg
